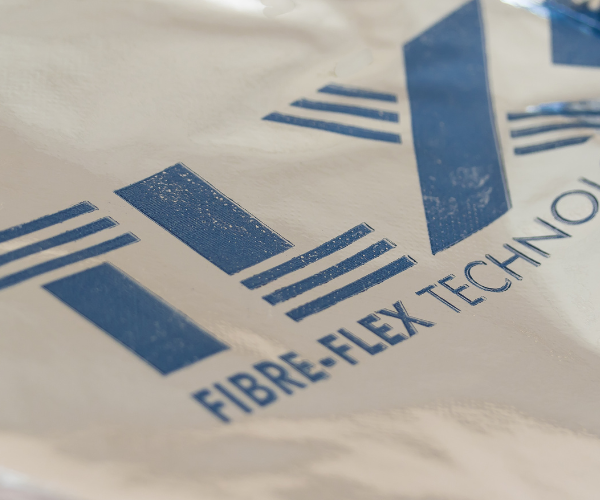

This advanced cover self-regulates based on conditions. The patented technology encapsulates PCM within the fibres of the thermal blanket providing a simple, all-in-one solution. This unique system is robust, thin, flexible, and easy to handle. Additionally, the outer surfaces of the TLX PCM feature a low-emissivity coating, designed to reflect over 97% of thermal radiation across the measured spectral range.
Phase Change Materials (PCMs) are specialised thermal energy storage materials widely used to reliably maintain required temperatures across various industries. They store and release heat through chemical bonds, transferring thermal energy when they transition between solid and liquid states. This process, known as a phase change, enables effective temperature regulation.
Phase Change Materials are ideal for thermal energy storage due to their cost-effectiveness, stability, and environmental friendliness. They are perfect for cold chain transportation, temperature-controlled packaging for food, and pharmaceuticals. PCMs provide consistent performance over many cycles, maintaining a constant temperature during the release and absorption of energy.
| FABRIC | UNITS | DATA |
|---|---|---|
|
Basic Weight |
g/m2 |
94 |
|
MD Tensile Strength |
N/50mm |
169 |
|
MD Elongation |
% |
35 |
|
CD Tensile Strength |
N/50mm |
102 |
|
CD Elongation |
% |
30 |
|
MD Nail Tear |
N |
55 |
|
CD Nail Tear |
N |
70 |
|
MD Tear Strength |
N |
75 |
|
CD Tear Strength |
N |
60 |
|
Hydrostatic Head |
cm H2O |
>200 |
| PCM 2-8°C | UNITS | MANUFACTURER DATA |
|---|---|---|
|
Melting Temperature |
°C |
6.5 |
|
Freezing Temperature |
°C |
5 |
|
Latent Heat, Melting |
kJ/kg |
190 |
| PCM 15-25°C | UNITS | MANUFACTURER DATA |
|---|---|---|
|
Melting Temperature |
°C |
21 |
|
Freezing Temperature |
°C |
19 |
|
Latent Heat, Melting |
kJ/kg |
190 |
PATENT PROTECTED
UK patent application No. 1718276.7International patent application Nos. PCT/GB2018/050286 & PCT/GB2018/050638
